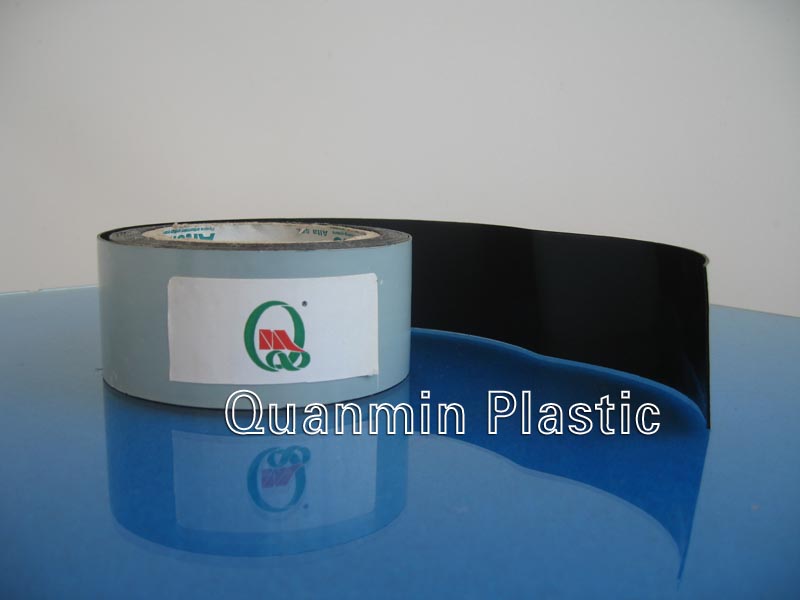

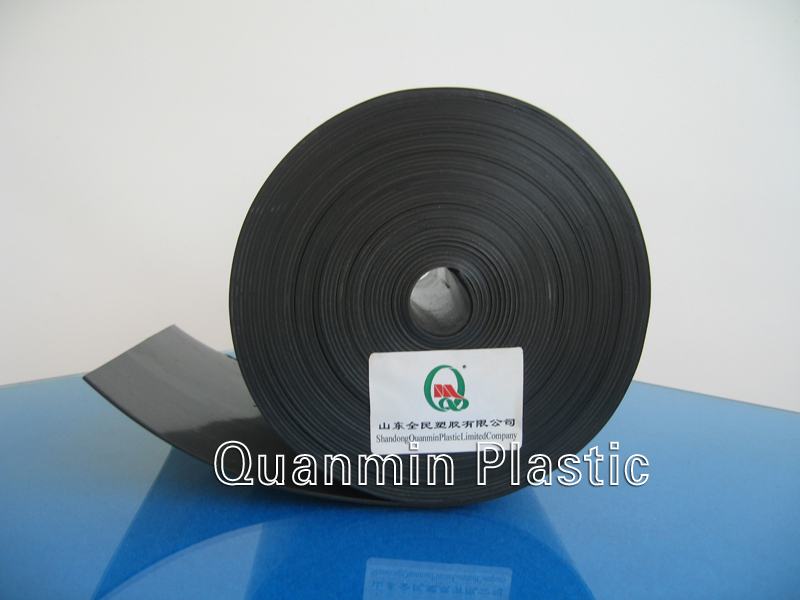

The filler tapes are designed as an underlying filler materials prior to the application of coating systems.
(1) Excellent corrosion resistance.
(2) Several colors available such as black, gray, green and red .
(3) Conformable to irregular pipe
(4) Compatible with general coating system.
The product consists of an irradiated cross-linked polyolefin sheet coated with a heat activated adhesive and is designed specifically for sealing and protection of damaged pipeline coatings.
-No special tools or equipment required
-Excellent abrasion resistance
-Inert to common acids,alkalis and solvents
-Barrier to moisture and corrosion
PE repair patch |
Test |
Method |
Value |
Tensile Strength of Backing |
ASTM D638 |
22 MPa |
|
Elongation at Break of Backing |
ASTM D638 |
600% |
|
Hardness, Shore D of Backing |
ASTM D2240 |
52 |
|
Dielectric Strength of Backing |
ASTM D149 |
35kV/mm |
|
Adhesive Water absorption |
ASTM D570 |
≤0.05% |
|
Adhesive softening point |
ASTM E28 |
125°C |
|
Adhesive Lap shear @23°C |
ASTM D1002 |
196psi |
|
Peel strength of PE repair patch |
ASTM D1000 |
60N/cm |
|
Impact resistance of PE repair patch |
DIN30672 |
20J |
Have questions? Need a quote? Feel free to contact us for specific questions.
